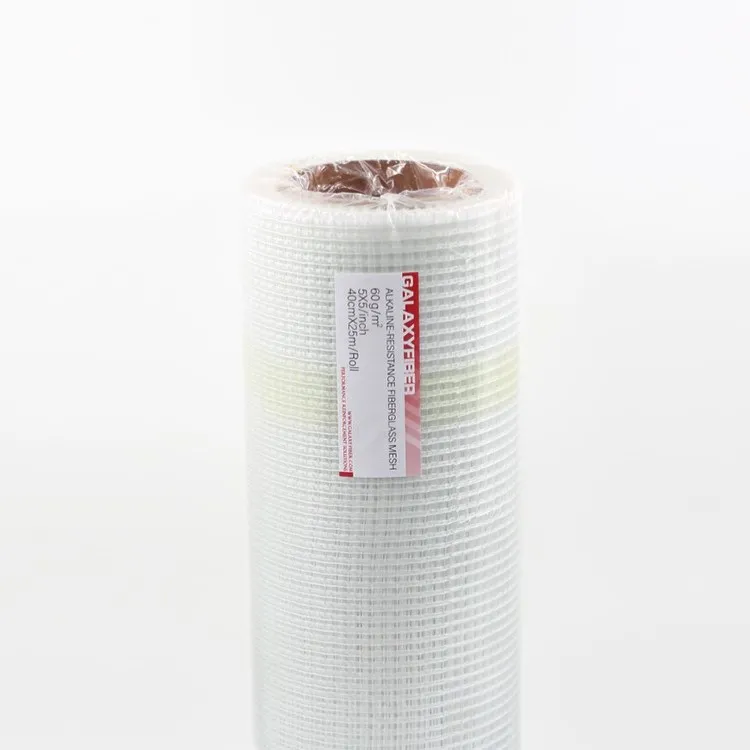

Roofing Mesh Fabric

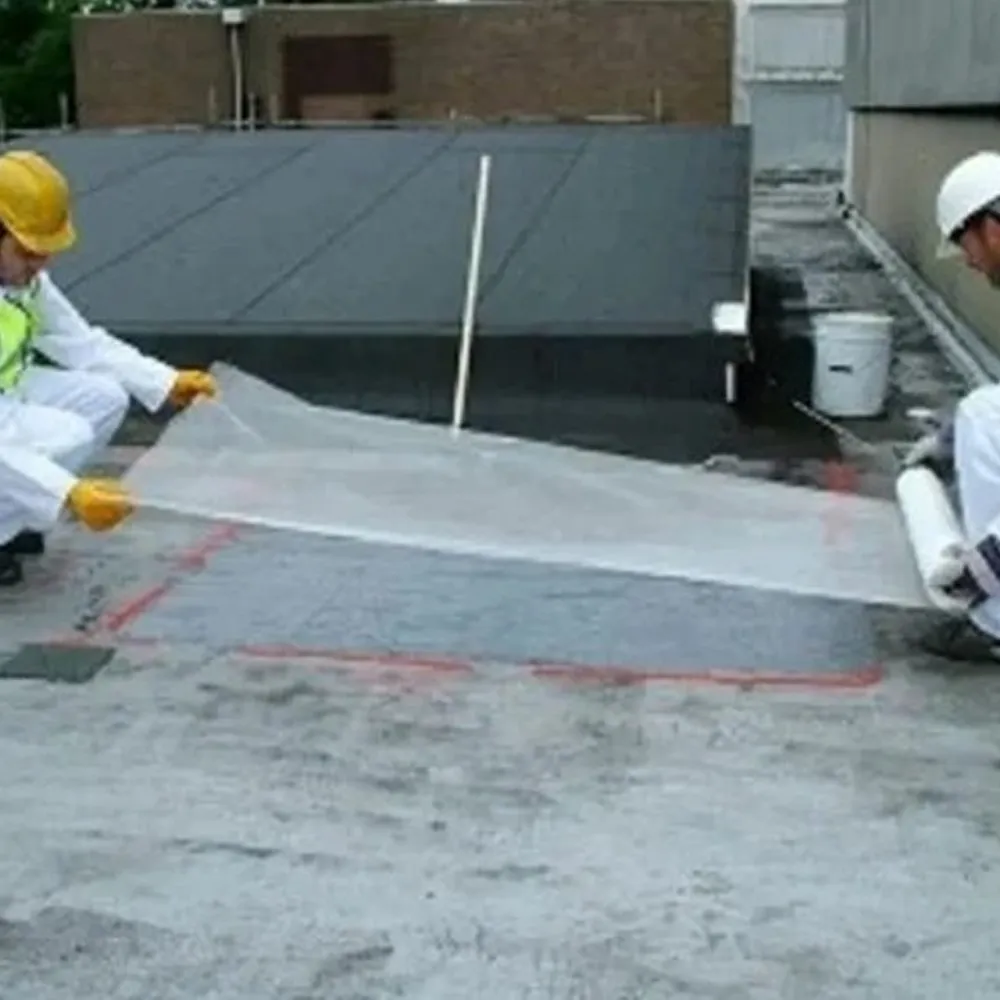

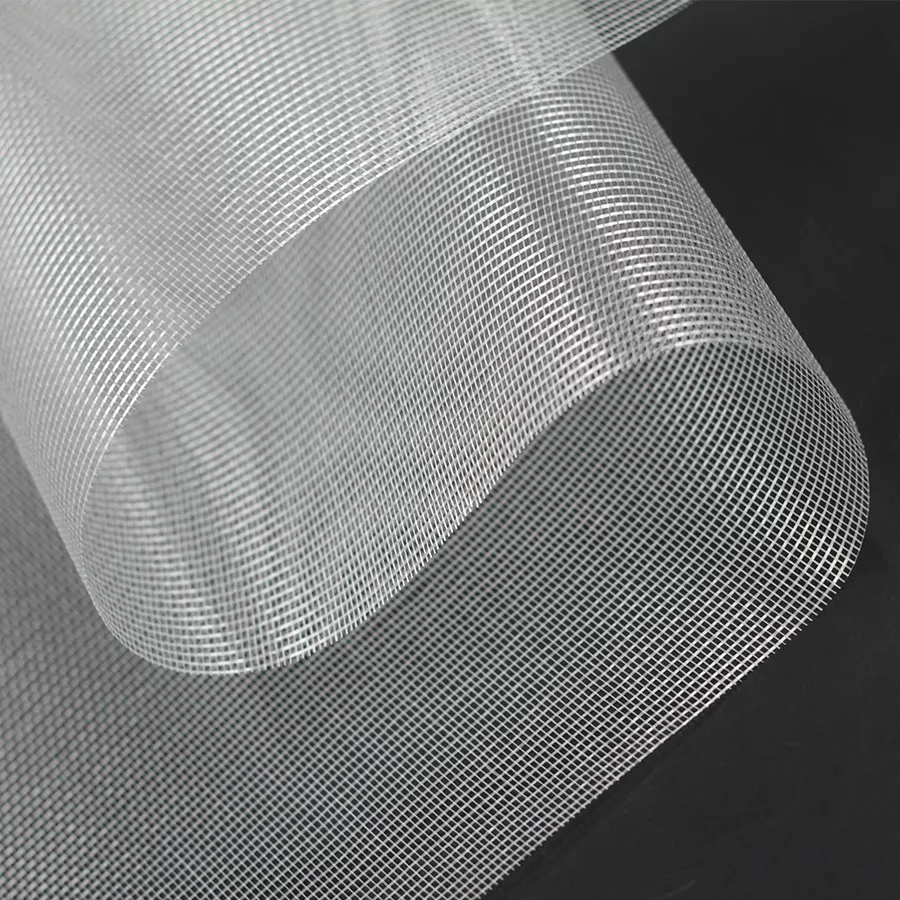

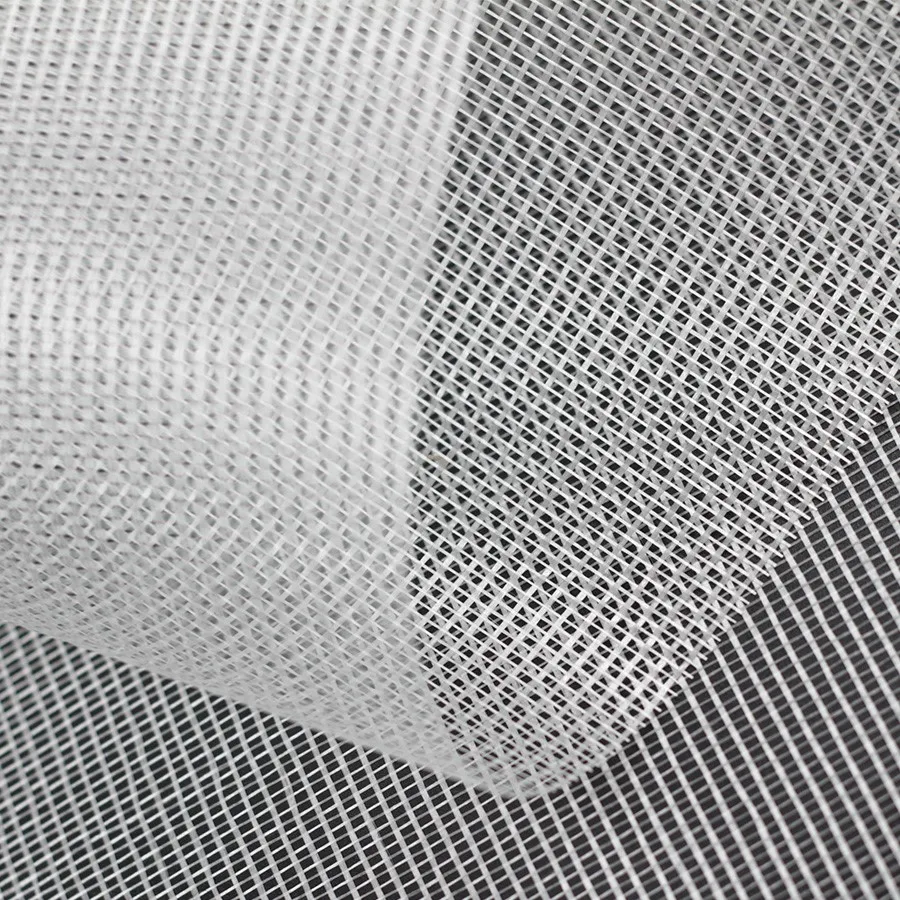

Product Details Fiberglass roofing mesh fabric made of high-quality silico-based material, it is widely used in a range of building construction applications, including internal and external reinforcement and insulation systems, roofing & floor screeds, waterproofing, reinforcement, molding...

Send Inquiry

Description

Products Description

Stable chemical properties: As an inorganic substance,Fiberglass roofing mesh fabric is not easy to react chemically with other substances, and is corrosion-resistant, resistant to water, acid-resistant and alkali-resistant.
High strength and high stability: Fiberglass itself has excellent tensile strength, high material stability, no shrinkage, no deformation.

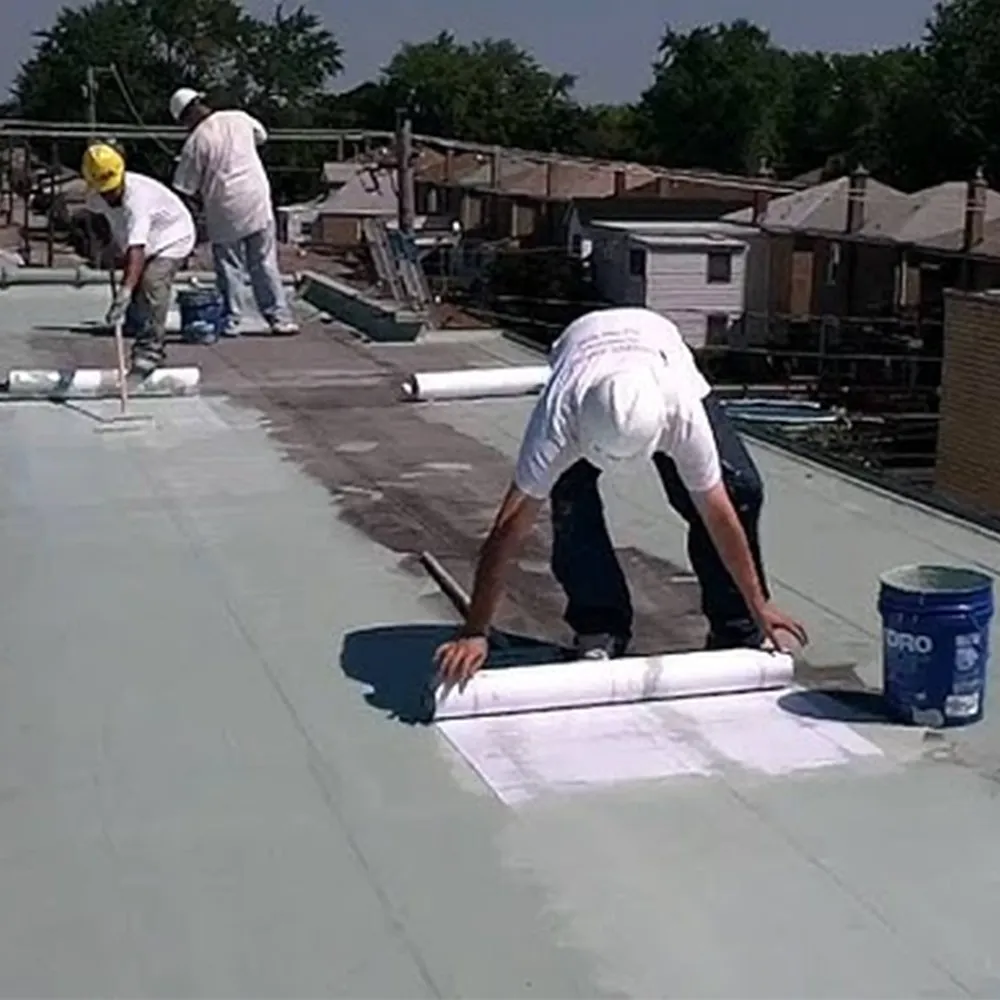

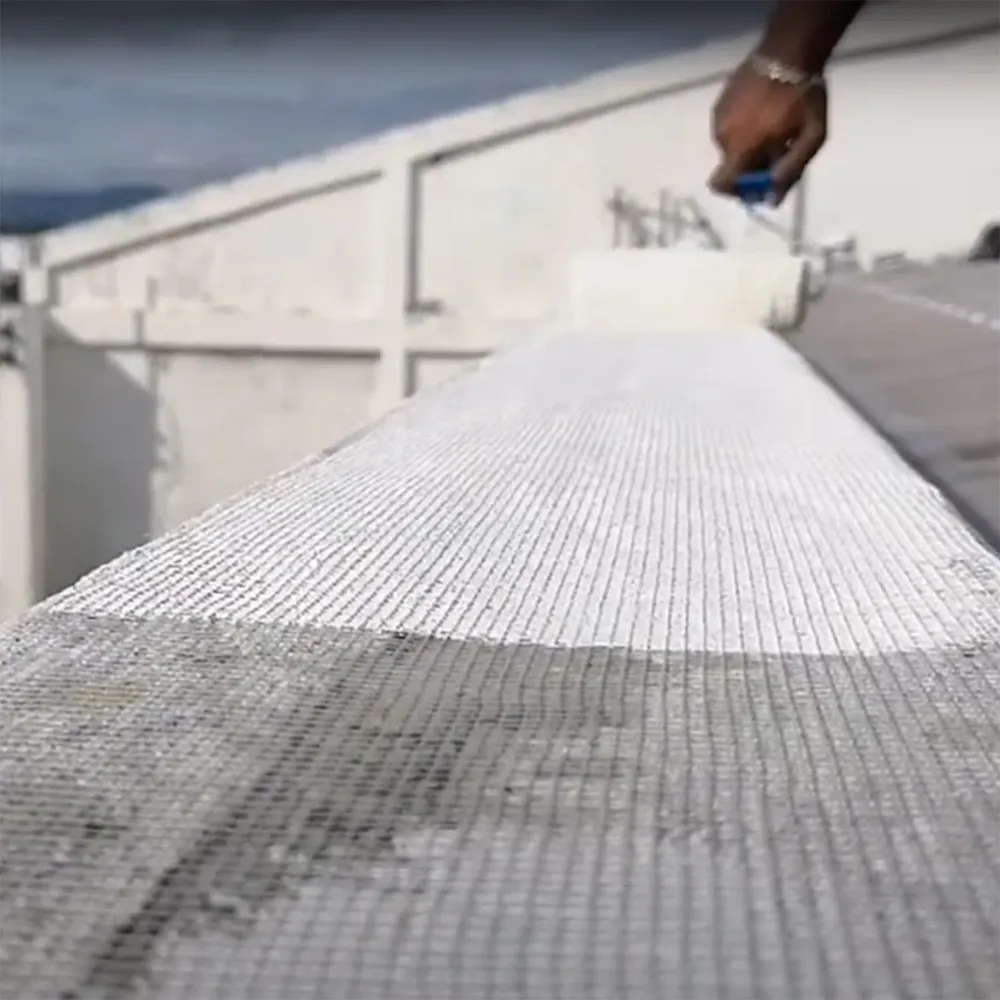

Simple, durable, and easy to install: Fiberglass roofing mesh fabric is very easy to use; simply fix it to the wall and apply a layer of putty-the installation is complete, it ensures the wall remains crack-free and significantly contributes to thermal insulation.

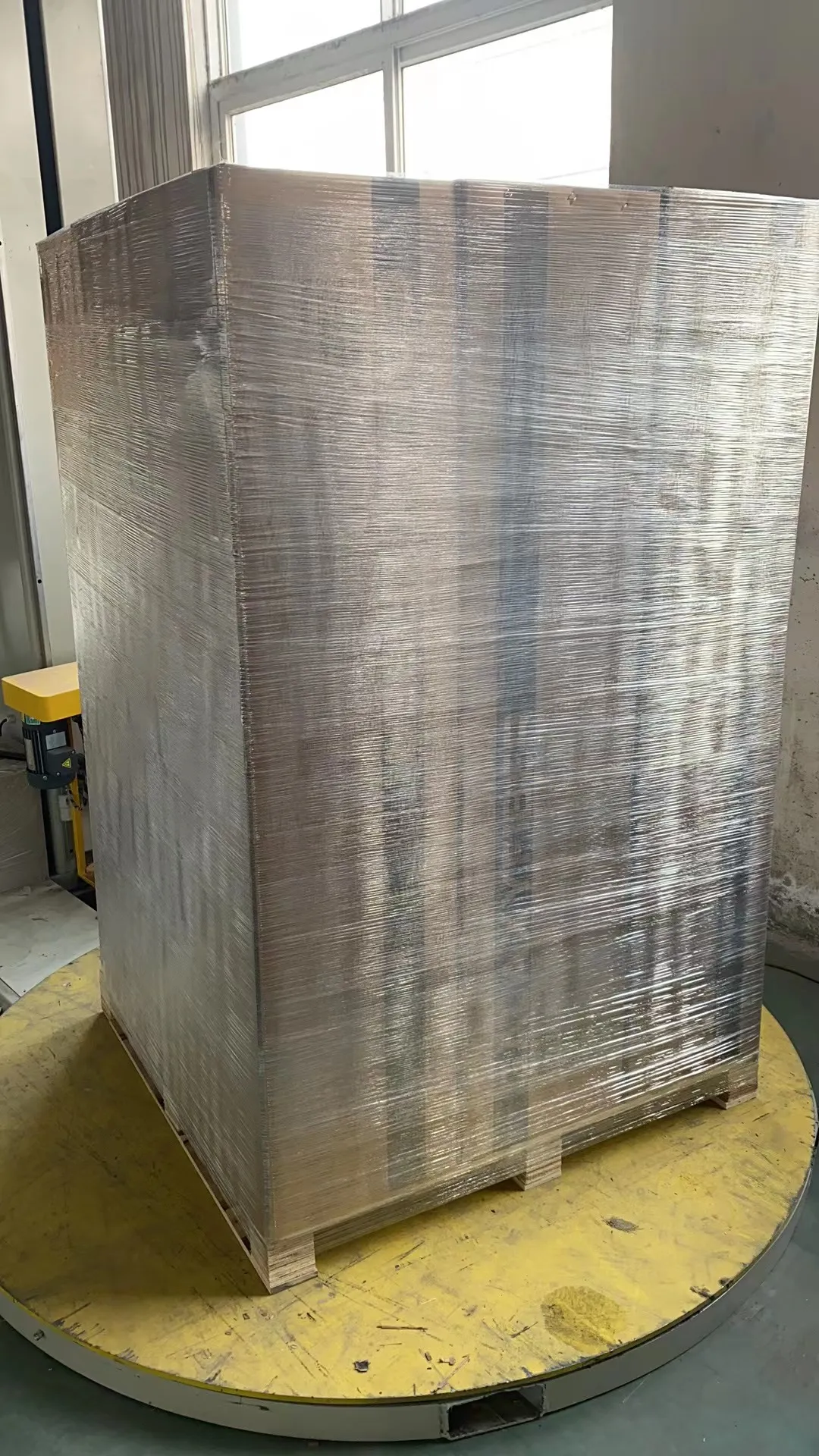

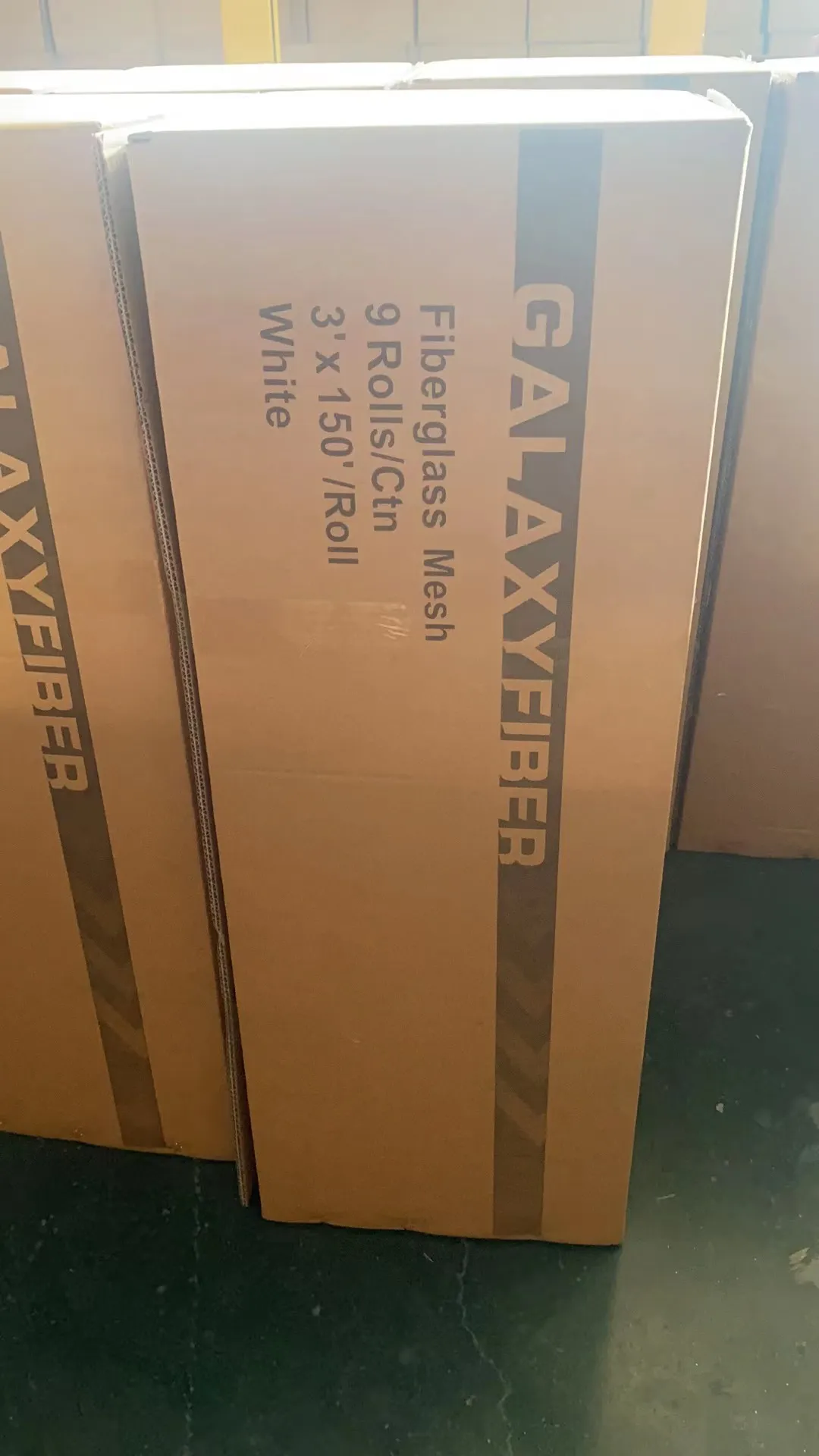

Inexpensive and easy to transport: It is light, utilize our film, carton box, and pallet packaging, effectively prevent damage during transportation, lower shipping cost, fast and efficient.

Specifications and parameters

Item No.	Density Count/25mm		Mesh Size (mm)		Area Weight (g/m²)	Tensile Strength (N/20mm)		Woven Structure	Content Of Resin %(≥)
Item No.	Warp	Weft	Warp	Weft	Area Weight (g/m²)	Warp	Weft	Woven Structure	Content Of Resin %(≥)
GF-20x20-45	20	20	1.2	1.2	45	550	550	Plain	14

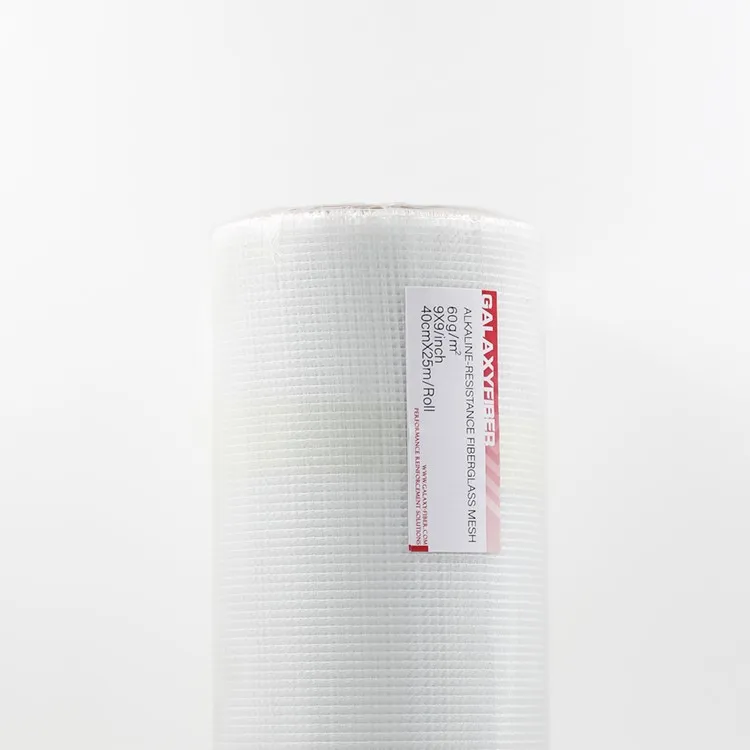

GF-9x9-45	9	9	2.85	2.85	45	500	600	Leno	18
GF-20x10-60	20	10	1.2	2.5	60	660	660	Plain	14
GF-20x20-60	20	20	1.2	1.2	60	700	700	Plain	14
GF-9x9-60	9	9	2.85	2.85	60	600	600	Leno	18
GF-20x10-75	20	10	1.2	2.5	75	660	750	Plain	14
GF-20x20-80	20	20	1.2	1.2	80	800	800	Plain	14

Production Process

product-750-431

About Unit Weight

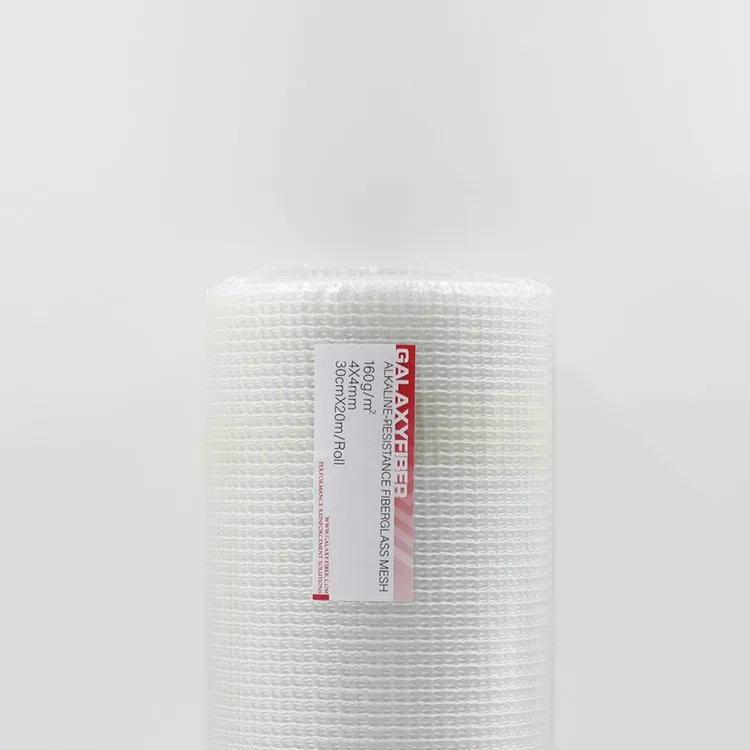

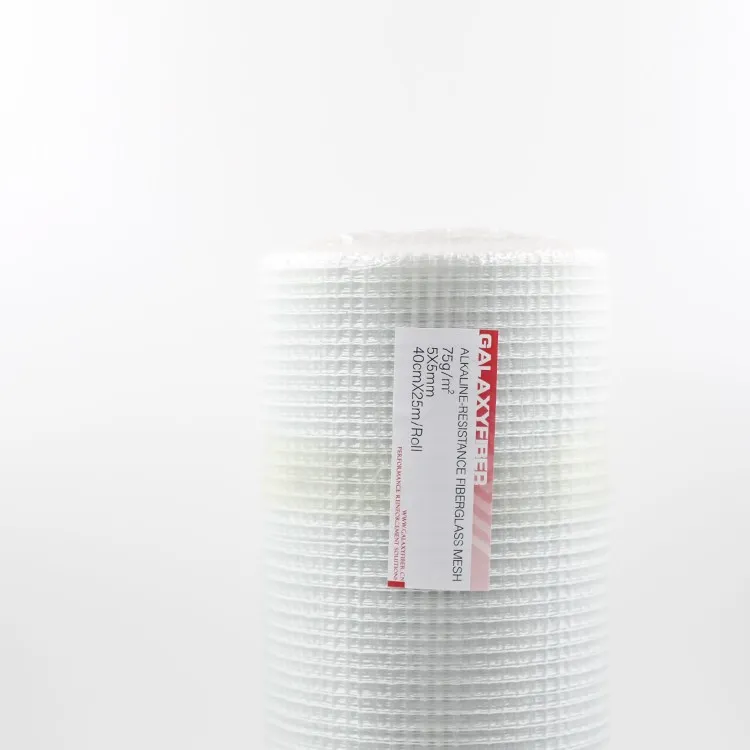

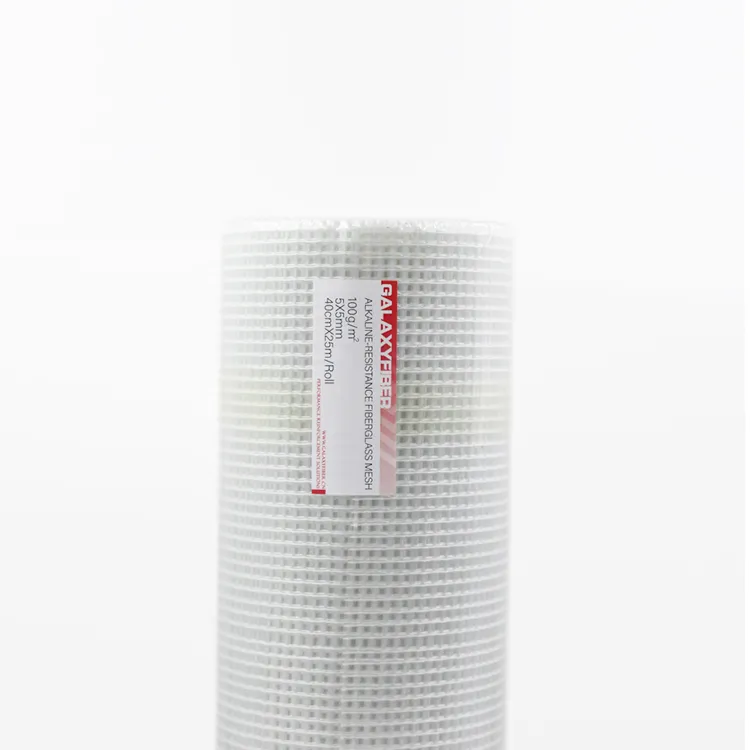

Unit weight is one of the most important parameters, for EIFS, the regular range of unit weight from 45-300g/m², normally including 45g/m², 60g/m², 75g/m², 90g/m², 110g/m², 145g/m² and 160g/m², for inner using, the weights are 45-125g/m², for exterior using, the weights from 110-160g/m².
