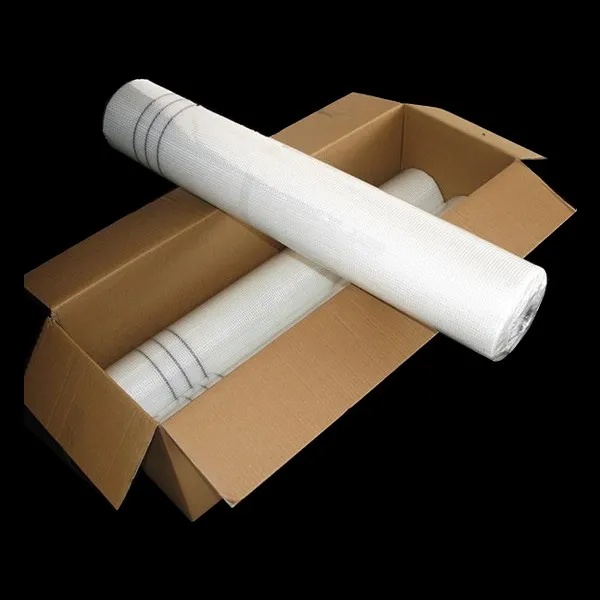

Glassfiber Mesh

Name: China Glassfiber Mesh Manufacturers Suppliers Factory - Discount Glassfiber Mesh for Sale - GALAXYFIBER
Brand: GALAXYFIBER
SKU: 256091776

As a professional manufacturer of glassfiber mesh in China, the fiberglass mesh produced by GALAXYFIBER is a reinforcement material specially designed for building walls. It is made of glass fiber raw yarn through weaving and shaping, and has extremely strong strength and durability. Using our glassfiber mesh helps to improve the structural stability and crack resistance of the wall, and has been widely used by many of our customers in the construction industry. The following are the main features and uses of our fiberglass mesh:

Send Inquiry

Description

Main Features

Material: We use high-strength glass fiber raw yarn as raw material, and the final woven product can form a solid grid structure.
High strength: Tensile strength is the most important feature of glassfiber mesh, which can effectively resist the action of external forces.
Corrosion resistance: Due to its inorganic properties, it has good resistance to moisture and chemicals, and can be used normally no matter what environment you are in.
Lightweight: Our glassfiber mesh is lightweight, ranging from 30g to 200g. Compared with other reinforcement materials, it is more convenient and flexible to use during your construction. It can adapt to different wall structures and is easy to install and handle.

Specifications and parameters

Item No.	Density Count/25mm		Mesh Size (mm)		Area Weight (g/m²)	Tensile Strength (N/20mm)		Woven Structure	Content Of Resin %(≥)
Item No.	Warp	Weft	Warp	Weft	Area Weight (g/m²)	Warp	Weft	Woven Structure	Content Of Resin %(≥)
GF-9x9-45	9	9	2.85	2.85	45	500	600	Leno	18
GF-9x9-60	9	9	2.85	2.85	60	600	600	Leno	18
GF-5x5-75	5	5	5	5	75	700	700	Leno	18
GF-5x5-90	5	5	5	5	90	800	1050	Leno	18
GF-5x5-110	5	5	5	5	110	850	1050	Leno	18
GF-10x10-110	2.5	2.5	10	10	110	1050	1250	Leno	20
GF-5x5-125	5	5	5	5	125	1200	1300	Leno	18
GF-6x6-145	6	6	4	4	145	1500	1550	Leno	18
GF-5x5-145	5	5	5	5	145	1400	1500	Leno	18
GF-6x6-160	6	6	4	4	160	1550	1650	Leno	18
GF-5x5-160	5	5	5	5	160	1450	1600	Leno	18
GF-10x10-160	2.5	2.5	10	10	160	1450	1700	Leno	20

Common uses

So far, this glassfiber mesh has been used by our customers in many places, including:

Exterior Insulation System (EIFS): It is used as a reinforcement layer in the exterior insulation system to help prevent wall cracks and damage.
In order to prevent cracks caused by shrinkage or temperature changes, it can be used to strengthen plaster and coatings.
Waterproof system: If you use it in a waterproof wall, it can increase its strength and durability.
Repair and reinforcement: Since we use high-strength fiberglass strands as raw materials, it can be used to improve the safety of its structure when repairing damaged walls or reinforcing old buildings.

20241104 005

Purchase Notes

If you purchase this fiberglass,please pay attention to the following details when using it:

Make sure the wall surface is flat and clean, which is conducive to the final laying effect;
During the laying of the mesh, after laying the glassfiber mesh flatly on the wall, you need to use nails or adhesives to fix it;
In order to ensure that the glassfiber mesh is better bonded to the wall, we can apply plaster or other covering materials on the mesh.

Production Process

product-750-431

About Unit Weight

Unit weight is one of the most important parameters, for EIFS, the regular range of unit weight from 45-300g/m², normally including 45g/m², 60g/m², 75g/m², 90g/m², 110g/m², 145g/m² and 160g/m², for inner using, the weights are 45-125g/m², for exterior using, the weights from 110-160g/m².
