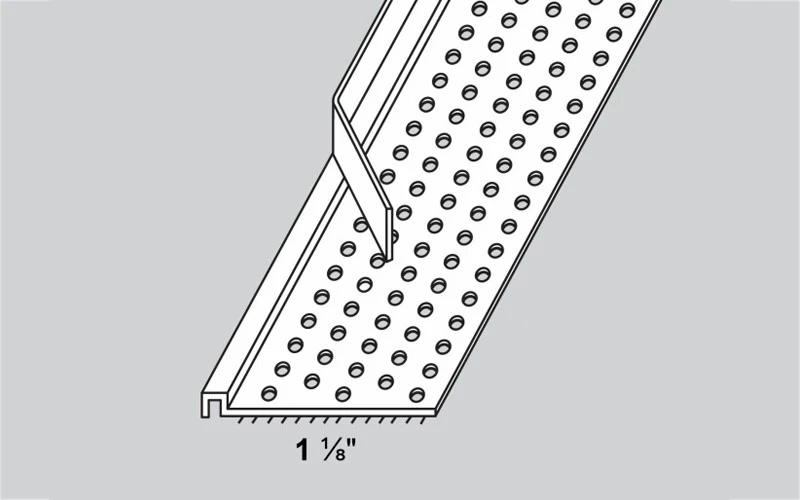

Detailed Specification Of PVC Flat Tear Away Bead

If length specifications are the "basic framework" for Flat Tear Away Bead to adapt to the European and American markets, then product detail specifications are the "core competitiveness" to win customer recognition. Our company has deeply optimized the detail specifications from three dimensions: "construction convenience, fitting stability, and durable protection". Among them, the 8mm tearable small wing design, surface texture treatment, and full-process weight detection system are three major technical highlights, and have become the "benchmark configuration" in the industry.

(1) Flexibly Adapting to Wall Flatness

The core pain point of traditional fixed-width corner guards is: when there are minor unevenness on the wall (such as old wall cracks, new wall plastering errors), the fixed-width wings cannot fully fit the wall, which is prone to edge warping and hollowing. After later coating construction, obvious delamination marks will also appear. To solve this problem, our company has innovatively developed the 8mm tearable small wing design. Through the composite technology of "micro-cutting process + high-toughness PVC base material", the width of the wings can be flexibly adjusted. The specific advantages are reflected in three aspects:

Precise and Controllable Tearing Performance: The depth of the micro-cuts on the surface of the wings is strictly controlled between 0.3-0.5mm, which not only ensures that construction personnel can achieve "smooth tearing" by hand or with simple tools but also avoids problems such as "breakage and burrs" during the tearing process. Test results show that the tearing force of the wings is stable at 5-8N, which can be easily operated by both male and female construction personnel, and the edge flatness error after tearing does not exceed 0.1mm.

Full-Scenario Adaptive Width Adjustment: The width of the wings can be flexibly adjusted according to the wall flatness. The minimum can be torn to 3mm, which is used to repair small gaps on the walls of old buildings (such as the 0.5-1mm corner cracks common in residential buildings in the old town of Paris), achieving "invisible protection" through narrow-width fitting; the maximum can be retained at 8mm, which is used for wide-width fitting of new walls, especially suitable for the standardized corners of prefabricated walls in North American modular housing, ensuring "gap-free connection" between the corner guard and the wall, and the fitting error is controlled within 0.2mm.

Edge Warping Resistance and Stability Improvement: The tearable design fundamentally solves the problem of "incompatibility between fixed width and uneven walls". Post-construction tests show that the fitting area between the corner guard with this wing and the wall reaches more than 98%, which is much higher than the 90% fitting rate of traditional corner guards. The probability of edge warping and hollowing in the later period is reduced to below 1%, greatly reducing rework costs.

(2) Strengthen the bottom line of quality

The weight of PVC corner guards not only reflects the uniformity of raw material filling but also is directly related to their mechanical properties. If the weight deviation is too large, it means the base material thickness is uneven and the filler distribution is uneven, which will lead to the decrease of bending resistance and impact resistance, affecting the protection effect. To ensure the consistency and stability of product quality, our company has established a "full-process weight detection system", and the specific process is as follows:

Batch Sampling: Random samples are taken from each batch of products, covering the pre-production, in-production, and post-production stages to ensure the representativeness of the samples.

Precise Weighing: A 1-meter standard section is cut from each sample, and weighed with an electronic scale with an accuracy of 0.01g. The weight deviation of a single sample is required to not exceed ±2g. If the deviation of a single sample exceeds the range, the sampling is expanded to 300 pieces. If there are still deviations, the entire batch is reworked.

Batch Calibration: The average weight of each batch of products is strictly controlled within the range of ±1g. If the average weight deviates from the standard value, the production process is adjusted in time (such as adjusting the raw material conveying speed and temperature parameters of the extruder) to ensure the weight stability of subsequent products.

The specification design of Flat Tear Away Bead is essentially a systematic solution "oriented to the needs of the European and American markets". In terms of length specifications, it accurately matches the European and American building height system to achieve the construction efficiency of "one piece to the top"; in terms of detail specifications, it solves construction pain points and ensures quality stability.
