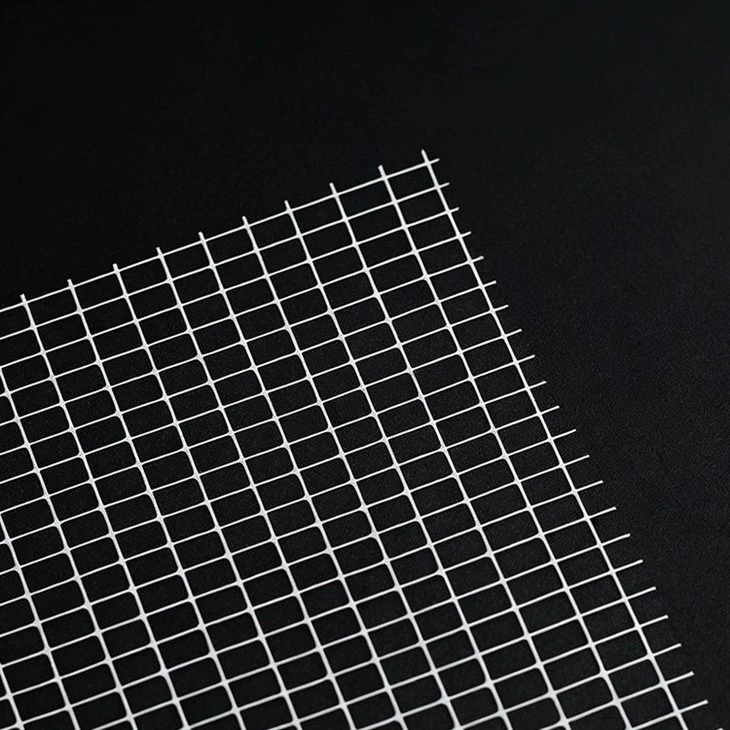

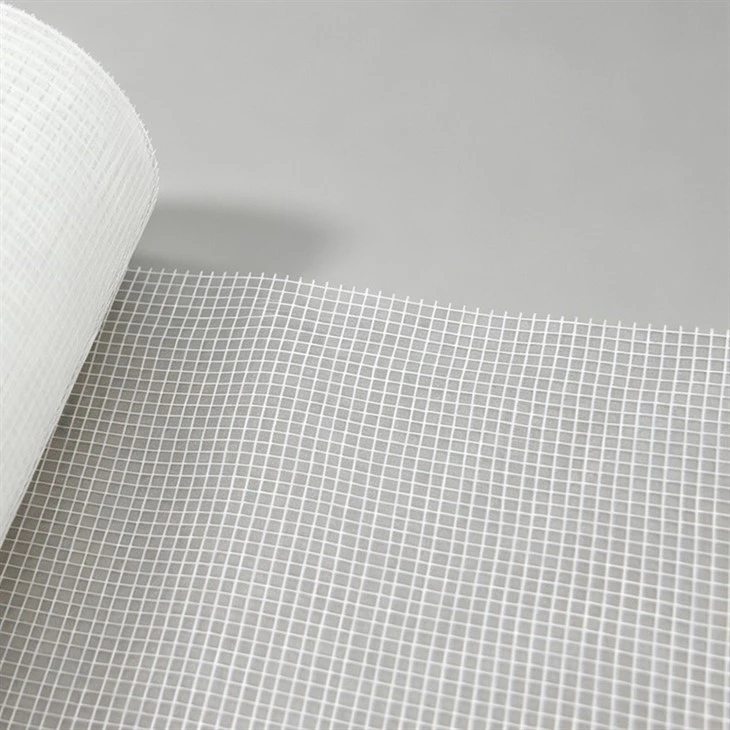

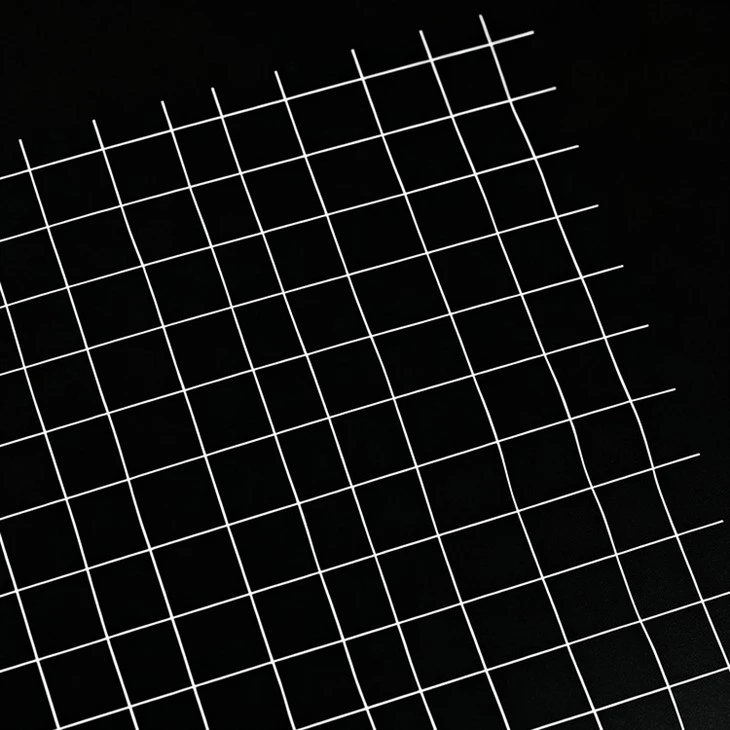

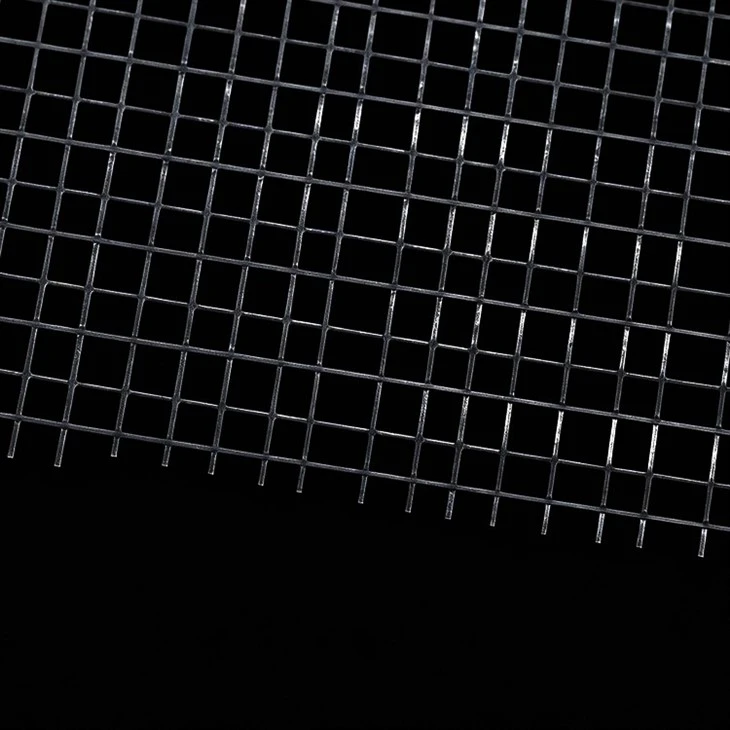

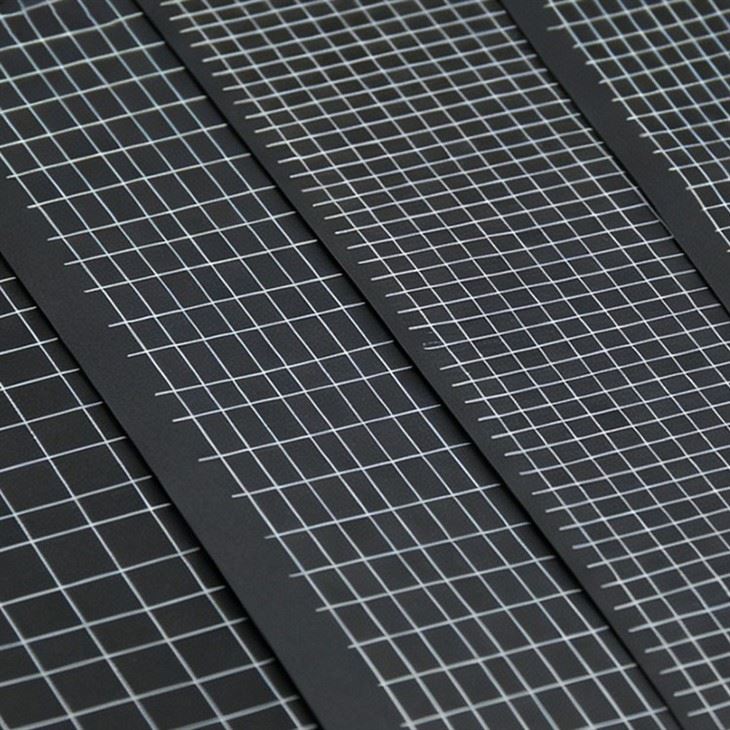

Laid Scrim

Laid Scrim

Raw materials include fiberglass, polyester and other synthetic fibers. Laid scrim is manufactured by laying continuous filament yarn in biaxial or multiaxial directions and bonding by adhesive to hold structure and stability of the scrim. Due to open construction, laid scrim is the most effective and economic solution for flexible reinforcements. A layer of glass or polyester veil can be laminated to scrim. Laid scrim can increase strength, stabilize structure with high strength and light weight. It can be fully bonded with almost any material.

Send Inquiry

Description

Product Information





GALAXYFIBER Laid Scrim is a high-performance lightweight reinforcement material specifically developed for construction, waterproofing membranes, industrial composites, and transportation applications. It is laminated to the reverse side of materials or embedded during production to provide structural reinforcement, crack resistance, improved flexural strength, and dimensional stability.



Key Features for Mosaic Tile Applications





  • High tensile strength：Despite being light, it has high tensile and impact resistance, strong and durable.
  • Enhanced mechanical strength：Precisely woven, resists deformation under load, maintains dimensional stability.
  • Light, thin, wide range of application：Extremely low weight per unit area, thin and lightweight material, applicable across various fields.
  • Cost-effective：Low comprehensive cost over the entire lifecycle (transportation, installation, and maintenance).



Standard Specifications





 Item No. Yarn Mesh Size GSM Warp Tensile Weft Tensile
GF-LS001

34

 5x5 15.5±8% 200 200
GF-LS002 34 10x10 7.78±8% 100 100
GF-LS003 34 3x3 25±8% 280 280
GF-LS004 34 6.25x6.25 12.4±8% 150 150
GF-LS005 34 6.25x12.5 9.3±8% 150 70
GF-LS006 34x68 2.5+10x8 16±8% 100 180
GF-LS007 68 2.5+10x8 22±8% 400 320
GF-LS008 34 3x12 16±8% 300 80
GF-LS009 68 3x10 33±8% 360 200
GF-LS010 68x34 5x5 24±8% 350 180

Custom weights, widths, lengths, and colors available upon request.



Products Description

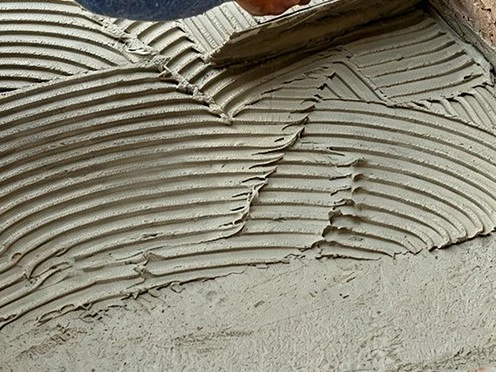

Construction
Construction

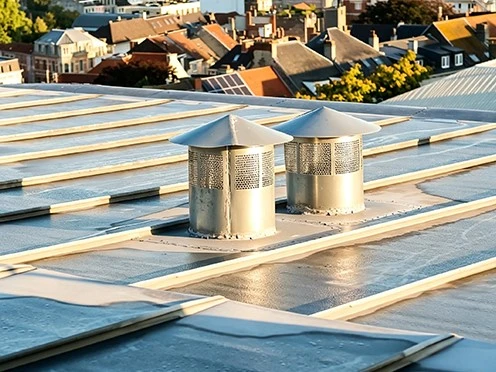

Industrial Composites
Industrial Composites
Transportation
Transportation

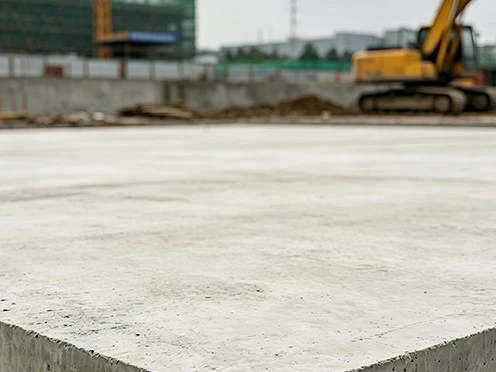

Geotextile
Geotextile



Production Process



Fiberglass Mesh Manufacturing Process



Packaging





  1. Packaging methods: PE shrink wrap / Carton packaging / Pallet packaging
  2. Standard packaging: Individually shrink-wrapped rolls; 4–6 rolls per carton
  3. Customization options: Packaging methods can be customized according to customer requirements



FAQ





Q1: What is the difference between laid scrim and woven mesh?

A: Woven mesh features interlacing warp and weft yarns, while laid scrim is nonwoven-yarns are positioned by adhesive rather than weaving. This gives laid scrim superior dimensional stability at the same grammage, with thinner profile and better matrix penetration.

Q2: Is the product alkali-resistant?

A: Yes. Our laid scrim uses alkali-resistant glass fibers (C-glass) or polyester fibers with alkali-resistant coating, ensuring long-term performance stability in alkaline environments such as cement-based materials.

Q3: How to choose the right grammage?

A: 7.78–12.4 g/m²: For ultra-lightweight applications such as filter media support and lightweight packaging.

15.5–16 g/m²: For general-purpose reinforcement like wall crack resistance and waterproofing membrane carriers.

22–25 g/m²: For higher-strength applications such as FRP products and industrial composites.

33 g/m²: For high-load structural reinforcement and strengthening.

Contact our technical team for professional selection guidance.

Q4: Can specifications be customized?

A: Yes. We support customization of grammage, mesh size, width, roll length, color, and yarn specifications. Samples or technical parameters are welcome for custom production.

Q5: What role does laid scrim play in composites?

A: Laid scrim serves as structural reinforcement in composites: improving strength, distributing stress, preventing cracking, and enhancing flexural performance, while adding virtually no extra weight or thickness-achieving non-destructive reinforcement.

Q6: What is the minimum order quantity (MOQ)?

A: MOQ varies by specification. Regular specifications are available with relatively low MOQ. Please contact our sales team for details.

Q7: What is the lead time?

A: Regular specifications typically require 7–15 working days. Custom specifications depend on specific process requirements. Expedited processing is negotiable for bulk orders.



Laid Scrim：Light, Strong, Reliable – From construction to industrial composites, safeguarding the stability and durability of every structure.
